glue dispensing
(oil and fuel filters, air circular filter)
COMMON CHARACTERISTICS
• Production depending on the quantity of material to distribute
• Mechanical rotating table with electrical function
• Six stations with rotating disc
• Two available versions: one with 250mm
diameter disc and the other 400mm
diameter disc.
• Automatic distribution of detacher
• Air blow dryer
• Hot air blowing heating
• Electronically regulated rotation speed
of disc
• Heating temperature can be regulated
• Presence of piece sensor
• Foamer interfacing
• Optional foaming machine
• PLC control
• Material pump and distributor supplied as optionals
• Complete maintenance and user manual with electric and pneumatic diagrams
and a list of components used
• Reliably and strongly built following
• European standards

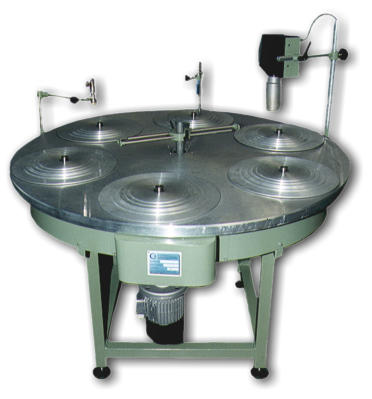

Complete with a foaming machine for polyurethane, this machine allows the
distribution of material over a round die in the best way.

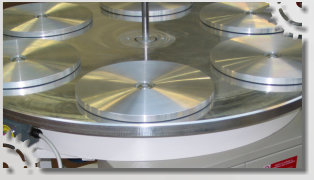

The base disc rests on a mechanical rotating table, the six stations have a plate
and are, apart from one, motorized at a variable speed.
The first station, the one not motorized, is to load and unload the dies. There is a
spray gun which distributes the detacher over the die at the second station. At the
third station there are two air blowers which dry the die so that the solvent in the
detacher, distributed by the previous station, evaporates. At the fourth station
there is a hot air blower. This is to keep the die at the correct temperature. The
fifth station is free. Here the foaming head which distributes the polyurethane
should be placed. There are two versions of this machine available. The first has
stations which can hold dies with a maximum diameter of 250mm., the second with
stations with a maximum diameter of 400mm.
Centring rings can be obtained from the station discs, or supplementary centrers
can be mounted. The machine management is by an auxiliary PLC control.
Appropriate sensors tell the machine if a die is present or not
at a station, so avoiding operations which are not necessary.
The foamer, which is not supplied with the machine, is
introduced into the cycle allowing a harmonious functioning.
The hot air blower has a temperature regulating system. The
detacher gun, the drying blower and the heater are all placed
on arms which can be easily adjusted to all desired positions.
It is possible to use this machine even for jobs which need a
distribution onto circular pieces or dies, as for example glueing the bottoms of
industrial air filters or the distribution of plastisol during the production of some
circular air filters.
