I T A L I A N F I L T E R S M A C H I N E S
Machines
Machine and tools for special product
coiling drum machines (fuel filters)

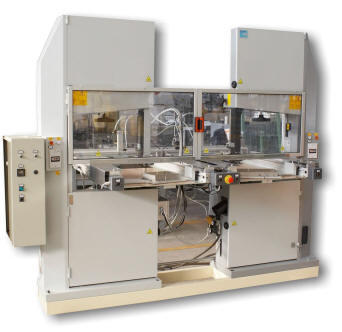

semiautomatic cutter for trapeze filters
(panel air filter)
TECNICAL DATA
•
Two versions available: 1 or 2 stations
•
Production : approx. 250 cuts/hour per each station (the single
station can manufacture 500 filters per hour, and the double can
produce 1000 filters)
•
Double stations completely independent
•
Motorized hold filter slide
•
Feed speed electronically changeable
•
Band saw cut
•
Filter’s maximum dimension 400x300mm (pleats height from 25
to 60mm)
•
Electronic controls for all the stages of the cycle
One of the biggest problem for the new trapezoidal filters is the angular cut.
This machine allows a good cut without problem and in complete safety for
the operator.
It is possible to carry out 2 full cuts (original filter divided in two) or just
partial cuts (cut of a single angle)

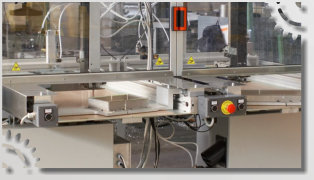

Some comfortable hold filters, easily
interchangeable, allow the simple and
correct positioning of the filters to be cut.
