PLEATING MACHINES
Machine for pleating paper or syntetic media
I T A L I A N F I L T E R S M A C H I N E S
Machines

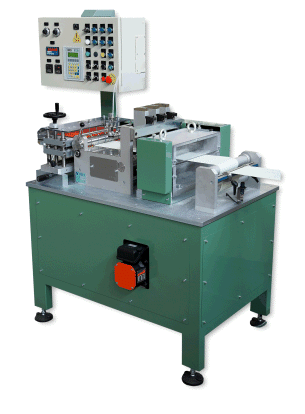

This is a Rotor’s variant, VARIO means “Variable”.
This machine can change the height of the pleat without changing
the engraving rolls group.
The machine is usually supplied with 2 rolls groups that allow to
create pleats from 15 to 50 mm.
This machine is supplied with a motorized hold paper with
automatic tensioning system.
COMMON CHARACTERISTICS
• Pleat height obtained: minimum 12mm, maximum 50mm.
• Maximum width obtained: approx. 300/700mm
• Maximum pleating speed: 1000 pleats per minute depending on the
type of paper, height of pleat and width of the roll of paper used

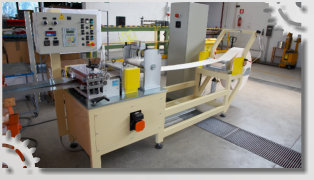

This variant of the VARIO pleating machine, uses a
motorized belts system to collect the pleats, thus
substituting the standard system.
It is introduced instead of the standard group.
Pleats are collected by toothed motorized
belt perfectly synchronized with the
folding. This allows a notable
improvement of the simplicity of
the machine’s use and it
completely disengages from the
problems related with the pleating
system regulations of theese
machines .
This system heightens considerably the easy use of the machine, thus
allowing to have a better quality with less labour.
This system is particularly suitable for pleats high from 12 to 40 mm,
therefore for oil or fuel filters. This machine can work papers and
“hard” synthetic materials without any problem.
These machines can work only without glue.
The maximum tolerated width of the roll of paper is 700mm.
Smaller versions with the maximum paper passage
of 600 and 300mm are available.
BELTS pleats collector system
machine for circular air filters
machine for oil filters
machine for cabin filters
A part from the large amount of time the
operator saves, the electronic solution of the
Vario allow pleat height increases of 0.1mm.
This machine is suitable for filter element
production which do not need to be glued
between the folds, such as some types of
circular air filters for industrial vehicles or
oil filters. The machine is supplied with two
groups of rollers suitable for two height
groups: the first for pleats from 15 to 28
mm the second for pleats from 29 to 50mm.
belts pleats collector
pleats without glue (oil/fuel filters, air circular and cabin filters)
