PLEATING MACHINES

Machine for pleating paper or syntetic media
I T A L I A N F I L T E R S M A C H I N E S
English

Machines

This is a Rotor’s variant, VARIO means “Variable”. This machine can change the height of the pleat without changing the engraving rolls group. The machine is usually supplied with 2 rolls groups that allow to create pleats from 15 to 60 mm. This machine is supplied with a motorized hold paper with automatic tensioning system.
VARIO ACCESSORIES ACCESSORIES STANDARD
standard pleats collector pleats without glue (circular air filters and cabin filters)
machine for circular air filters machine for oil filters machine for cabin filters

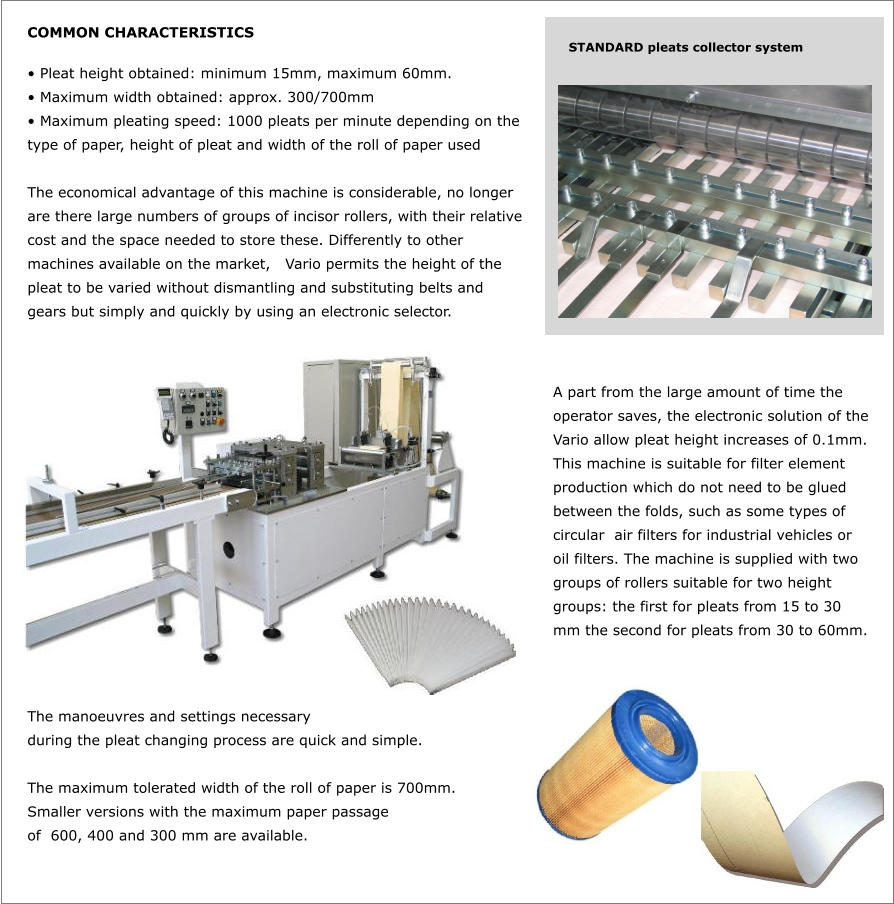

COMMON CHARACTERISTICS     • Pleat height obtained: minimum 15mm, maximum 60mm. • Maximum width obtained: approx. 300/700mm  • Maximum pleating speed: 1000 pleats per minute depending on the  type of paper, height of pleat and width of the roll of paper used  The economical advantage of this machine is considerable, no longer are there large numbers of groups of incisor rollers, with their relative cost and the space needed to store these. Differently to other machines available on the market,   Vario permits the height of the pleat to be varied without dismantling and substituting belts and gears but simply and quickly by using an electronic selector.                   The manoeuvres and settings necessary  during the pleat changing process are quick and simple.  The maximum tolerated width of the roll of paper is 700mm.   Smaller versions with the maximum paper passage  of  600, 400 and 300 mm are available.   STANDARD pleats collector system  A part from the large amount of time the operator saves, the electronic solution of the Vario allow pleat height increases of 0.1mm.  This machine is suitable for filter element production which do not need to be glued between the folds, such as some types of circular  air filters for industrial vehicles or oil filters. The machine is supplied with two groups of rollers suitable for two height groups: the first for pleats from 15 to 30 mm the second for pleats from 30 to 60mm.
