PLEATING MACHINES
Machine for pleating paper or syntetic media
I T A L I A N F I L T E R S M A C H I N E S
Machines

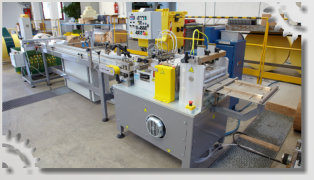

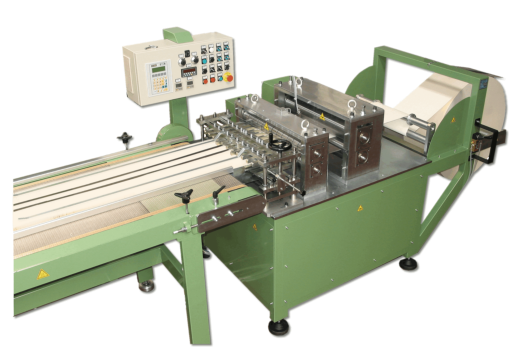

This is the traditional machine, the first model of rotary pleating
machine ever produced.
It is the most simple as to running concept.
standard pleats collector
pleats without glue (circular air filters or cabin filters)

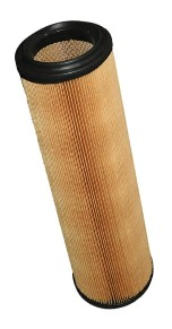

machine for circular air filters
machine for oil filters
machine for cabin filters
COMMON CHARACTERISTICS
• Pleat height obtained: minimum 15mm, maximum 60mm
• Maximum width obtained: approx. 300/700mm
• Maximum pleating speed: 1000/1500 pleats per minute depending
on the type of paper, height of pleat and width of the roll of paper
used
The simple rotating pleating system is ideal for oil filter and circular
air filter production which do not need to be sealed with hot-melt
glue. On this machine it is possible to work with or without hot-melt
glue depending on the desired product. The main difference compared
to the screw system pleaters is the pleating system, screws are not
used on this machine but a vertical guide collation
system.
When the machine is to be used without glue, it has a supplementary,
special post-heating plate which permits a good quality sealing of the
pleats which with only the infrared lamps would be insufficient.
The maximum tolerated width of the roll of paper is 700mm.
Smaller versions with the maximum paper passage
of 600, 400 and 300 mm are available.

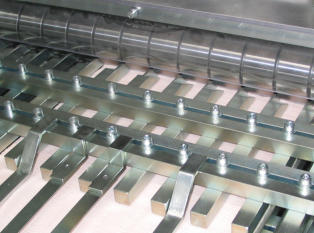

STANDARD pleats collector system
The advantage of this system is the
possibility not to use glue to hold the pleats,
the possibility of using "difficult" paper, the
possibility of pre-cutting length ways in this
way producing more than one filter element
at a time, the possibility of placing just one
central cord of glue to improve
manoeuvrability and firmness of the pleat
pitch.
