PLEATING MACHINES
Machine for pleating paper or syntetic media
I T A L I A N F I L T E R S M A C H I N E S
Machines

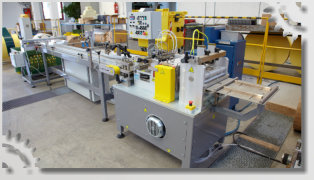

This variant of the ROTOR pleating machine, uses a star rolls
system to collect the pleats, thus substituting the standard
system.
star rolls pleats collector
pleats with or without glue (panel and circular air filters )

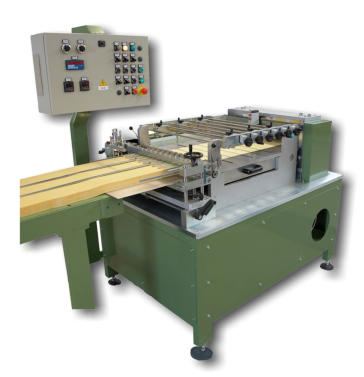

machine for panel air filters

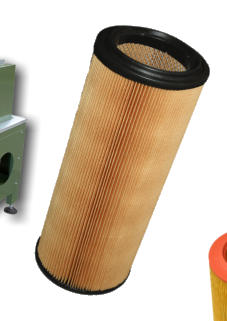

machine for circular air filters
COMMON CHARACTERISTICS
• Pleat height obtained: minimum 15mm, maximum 60mm
• Maximum width obtained: approx. 300/700mm
• Maximum pleating speed: 1500 pleats per minute depending on the
type of paper, height of pleat and width of the roll of paper used
This variant of the ROTOR pleating machine, uses a star rolls system
to collect the pleats, thus substituting the standard system.
This machine is in competition with the POKET model for what
concerns the panel air filters production. Compared to it, because of
its characteristics, it is more suitable to the trapezoidal filter
production and to the production of more filters simultaneously
(through a pre-cut of the main strip which is being under work).
These machines can work with or without glue.
When the machine is to be used without glue, it has a supplementary,
special post-heating plate which permits a good quality sealing of the
pleats which with only the infrared lamps would be insufficient.
The maximum tolerated width of the roll of paper is 700mm.
Smaller versions with the maximum paper passage
of 600, 500 and 415mm are available.

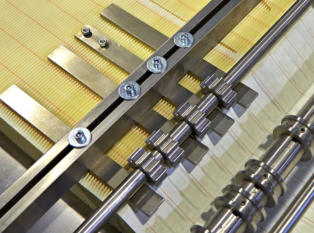

STARS ROLLERS pleats collector system
The advantage of this system is the
possibility to not use glue to hold the pleats,
the possibility of using "difficult" paper, the
possibility of pre-cutting length ways in this
way producing more than one filter element
at a time, the possibility of placing just one
central cord of glue to improve
manoeuvrability and firmness of the pleat
pitch.
Trapezoidal profile
With our machine it is possible to produce filters with
trapezoidal or rectangular profile, with bevel on one or
more angles. A special system, ruled by a software,
manages works in a easy and fast way.
