PLEATING MACHINES
Machine for pleating paper or syntetic media
I T A L I A N F I L T E R S M A C H I N E S
Machines

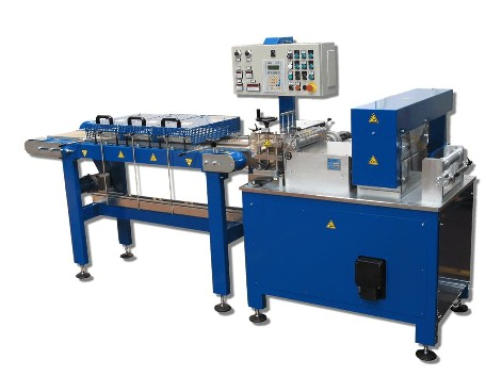

A special version of ROTOR series, allows the production of filter
elements cut without errors on the number of pre-set folds, and
with cut performed perfectly on higher or lower edge of fold,
without slobber.
belts pleats collector
pleats without glue (oil filters and fuel)
machine for oil filters
machine for cabin filters
COMMON CHARACTERISTICS
• Pleat height obtained: minimum 15mm, maximum 40mm.
• Maximum width obtained: approx. 300
• Maximum pleating speed: 300 pleats per minute depending on the
type of paper, height of pleat and width of the roll of paper used
A special version of ROTOR series, allows the production of filter
elements cut without errors on the number of pre-set folds, and with
cut performed perfectly on higher or lower edge of fold, without
slobber.
This new cutting system, patented by COSMEK srl, is useful for all
the filter elements that require an absolute precision in number of
folds (for instance in internal filters or in elements to be placed in
moulds via plastic injection).
Cut is performed in a completely new and revolutionary way,
abolishing completely the traditional imperfect systems.
These machines can work only without glue.
The maximum tolerated width of the roll of paper is 300mm.

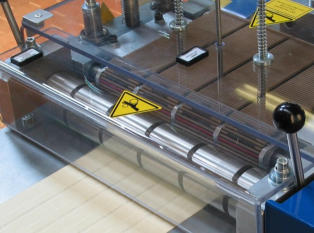

BELTS pleats collector system
This system is particularly suitable for pleats
high from 15 to 40 mm, therefore for air
cabin filters. This machine can work papers
and soft synthetic materials without any
problem.
perfect pleats cut number
Useful accessory is the automatic unloading
of filters, at the end of line: finished
elements are diverted
and canalised for an
easy collection.
100% precision guaranted
PATENTED COSMEK
