PLEATING MACHINES

Machine for pleating paper or syntetic media
I T A L I A N F I L T E R S M A C H I N E S
English

Machines

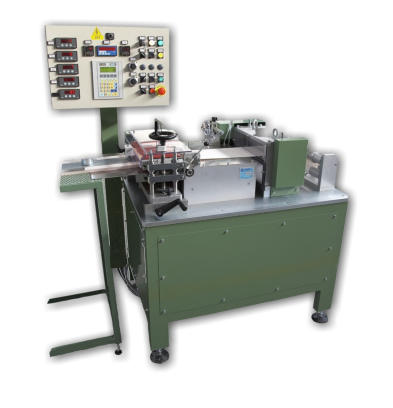

This variant of the ROTOR pleating machine, uses a motorized belts system to collect the pleats, thus substituting the standard system.
ROTOR ACCESSORIES ACCESSORIES ACCESSORIES
belts pleats collector pleats without glue (oil and fuel filters, air circular and cabin filter)
BELTS
machine for oil filters machine for cabin filters
PRIVACY
COMMON CHARACTERISTICS • Pleat height obtained: minimum 10mm, maximum 50mm. • Maximum width obtained: approx. 300/700mm • Maximum pleating speed: 1600 pleats per minute depending on the type of paper, height of pleat and width of the roll of paper used This variant of the ROTOR pleating machine, uses a motorized belts system to collect the pleats, thus substituting the standard system. It is introduced instead of the standard group. Pleats are collected by toothed motorized belt perfectly synchronized with the folding. This allows a notable improvement of the simplicity of the machine’s use and it completely disengages from the problems related with the pleating system regulations of theese machines . This system heightens considerably the easy use of the machine, thus allowing to have a better quality with less labour. These machines can work only without glue. The maximum tolerated width of the roll of paper is 700mm. Smaller versions with the maximum paper passage of 600 and 300mm are available.

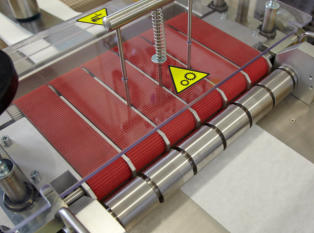

BELTS pleats collector system
This system is particularly suitable for pleats high from 10 to 40 mm, therefore for oil or fuel filters. This machine can work papers and “hard” synthetic materials without any problem.

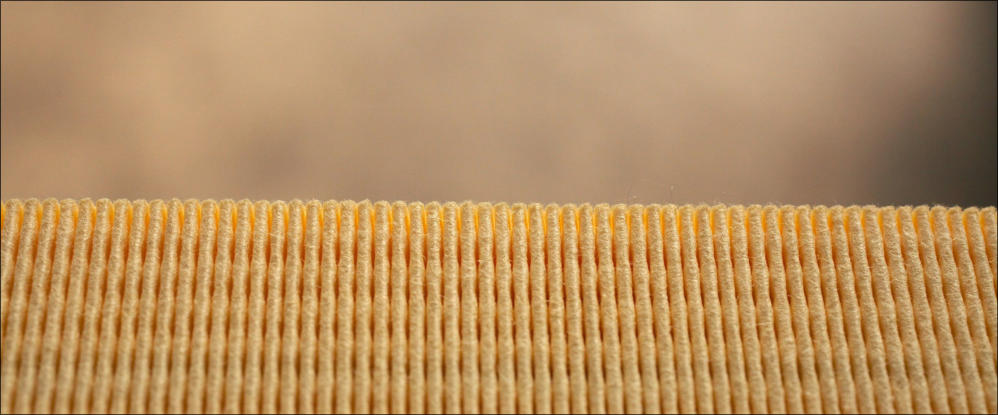

The quality of pleat that can be obtained through this machine is excellent.
CLIK TO ENLARGE
