CABIN FILTERS
Machines for cabin filters production
CABIN filters productions.
complete automatic line, pleating and assembling machine, for
medium and big productions
VARIO BELTS
pleating machine
PLEATING MACHINES
ROTOR BELTS
pleating machine
COMMON CHARACTERISTICS
• Pleat height obtained: minimum 12mm, maximum 60mm.
• Maximum width obtained: approx. 95/300mm
• Maximum pleating speed: 500 pleats per minute depending on the
type of paper, height of pleat and width of the roll of paper used

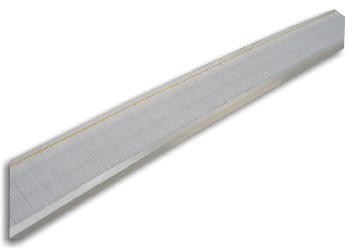

With this machine it’s possibile to produce cabin filters, usually called
“pollen fiters”.
It is the result of the union of 2 machines: a pleating machines,
VARIO or ROTOR type, and a automatic assembling machine of the
lateral edges. With it, it is possibile to produce filters in synthetic
material or paper, and, with some limitations, it is also possibile to
use material containing active carbon.

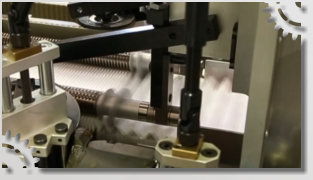

The machine, automatically bends the paper (or synthetic material),
outdistances the pleats, glues the lateral strips and cuts the filter.
In the standard version, the machine automatically inserts two
trimmings on the open side of the pleats; as an option it’s possible to
add the sytem to glue the trimmings on the heading.
In the cutting of the finished filter, the precision reached is high, we
obtain exactly the number of pleats wanted; this is due to the new
system of counting and cutting.
